Heavy Duty Steel Grating Plate Q235 ASTM A36 25X5mm 30X3mm 30X5mm 40X5mm

Heavy Duty Steel Grating Plate Q235 ASTM A36 25X5mm 30X3mm 30X5mm 40X5mm
Heavy Duty Steel Grating Plate Q235 ASTM A36 25X5mm 30X3mm 30X5mm 40X5mm Heavy Duty Steel Grating Plate Q235 ASTM A36 25X5mm 30X3mm 30X5mm 40X5mm Heavy Duty Steel Grating Plate Q235 ASTM A36 25X5mm 30X3mm 30X5mm 40X5mm Heavy Duty Steel Grating Plate Q235 ASTM A36 25X5mm 30X3mm 30X5mm 40X5mm

Büyük resim :  Heavy Duty Steel Grating Plate Q235 ASTM A36 25X5mm 30X3mm 30X5mm 40X5mm

Ürün ayrıntıları:
Menşe yeri: Çin
Marka adı: GNEE
Sertifika: ISO9001,SGS
Ödeme & teslimat koşulları:
Min sipariş miktarı: 10 metrekare
Fiyat: negotiable
Ambalaj bilgileri: Denize layık ambalaj, yani çelik şeritli ahşap veya çelik tepsi vb.
Teslim süresi: 5-9 iş günü
Ödeme koşulları: L/C, T/T
Yetenek temini: Haftada 100 ton
İletişim

Heavy Duty Steel Grating Plate Q235 ASTM A36 25X5mm 30X3mm 30X5mm 40X5mm

Açıklama
Vurgulamak:

Heavy Duty Steel Grating Plate Q235

,

Steel Grating Plate ASTM A36

,

Steel Grating Plate 40X5mm

Heavy Duty Steel Grating Plate Q235 ASTM A36
Available Sizes: 25×5mm, 30×3mm, 30×5mm, 40×5mm

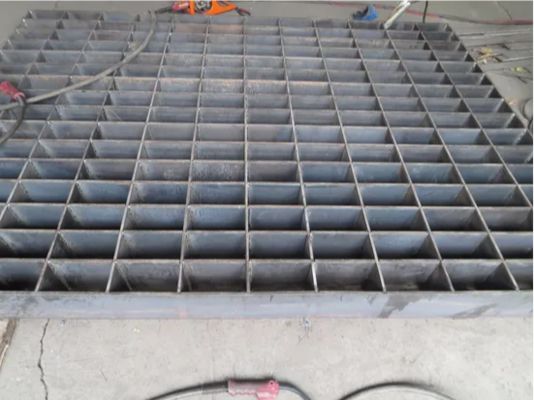

Heavy duty steel grating is made by welding with heavy flat bar and cross/round bars with certain distances. Our steel grating features high strength, light structure, high load-bearing capacity, and convenient installation.
Steel grating undergoes hot dip galvanized processing, offering these advantages: material savings, reduced investment costs, easy installation, durability, lightweight structure, no dirt accumulation, excellent ventilation, lighting and heat dissipation properties, along with anti-corrosive and anti-acid/alkali corrosion resistance.
Specifications
15-w-4 Bearing Bars at 15/16" O.C. Cross Bars at 4" O.C. 15-w-2 Bearing Bars at 15/16" O.C. Cross Bars at 2" O.C.
19-w-4 Bearing Bars at 1-3/16" O.C. Cross Bars at 4" O.C. 19-w-2 Bearing Bars at 1-3/16" O.C. Cross Bars at 2" O.C.
22-w-4 Bearing Bars at 1-3/8" O.C. Cross Bars at 4" O.C. 22-w-2 Bearing Bars at 1-3/8" O.C. Cross Bars at 2" O.C.
30-w-4 Bearing Bars at 1-7/8" O.C. Cross Bars at 4" O.C. 30-w-2 Bearing Bars at 1-7/8" O.C. Cross Bars at 2" O.C.
38-w-4 Bearing Bars at 2-3/8" O.C. Cross Bars at 4" O.C. 38-w-2 Bearing Bars at 2-3/8" O.C.
Product Name Steel grating
Material Low carbon steel / Stainless steel
Grade CN: Q235, Q345, US: A36, UK: 43A
Standard CN: YB/T4001-1998, US: ANSI/NAAMM, UK: BS4592-1987, AUS1657-1988, JJS
Certification CE, GOST, ISO9001, ISO14001, HSE
Bearing bar size 50×4,50×5,60×5,75×8,100×8,100×10mm, etc
Bearing bar pitch 20,25,30,32.5,34.3,40,50,60,62,65mm
Bearing bar type Plain, Serrated (tooth-like), I bar (I section), Serrated-I
Cross bar size 6×6, 8×8mm (twisted bar)/5, 6, 8mm (round bar)
Cross bar pitch 40, 50, 60, 65, 76, 100, 101.6, 120, 130mm, etc.
Panel size 3×20ft,3×24ft,3×30ft,5800×1000,6096×1000, as request
Surface treatment Untreated, hot DIP galvanized, cold DIP galvanized, painted, powder coated, pickling, electrolytic polishing, or as customers' requirement
Galvanization Standard CN: GB/T13912, US: ASTM (A123), UK: BS729
Color Silver/Black
Heavy Duty Steel Grating Plate Q235 ASTM A36 25X5mm 30X3mm 30X5mm 40X5mm 0 Heavy Duty Steel Grating Plate Q235 ASTM A36 25X5mm 30X3mm 30X5mm 40X5mm 1
Applications
Steel grating can be widely used in petrochemical plants, water treatment facilities, sewage treatment plants, municipal engineering, environmental engineering and other fields for platforms, walkways, trestle bridges, ditch covers, ladder treads, fences and railings.
Banding
Heavy duty gratings are commonly subjected to shock and impact loads. We highly recommend that all open ends be banded. The welded band bar helps distribute impact loads and minimizes distortion when subjected to repetitive traffic patterns.

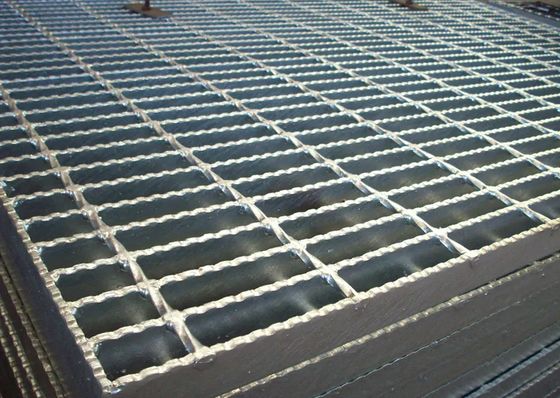

Serrated Surface
Optional serrated bearing bars enhance skid resistance. Consider this surface for applications subject to the accumulation of liquids or lubricants, or for inclined grating installations.
Heavy Duty Steel Grating Plate Q235 ASTM A36 25X5mm 30X3mm 30X5mm 40X5mm 2
