Hot Dip Galvanized Steel Grating Drain Cover with Serrated Surface and Customizable Sizes

Hot Dip Galvanized Steel Grating Drain Cover with Serrated Surface and Customizable Sizes
Hot Dip Galvanized Steel Grating Drain Cover with Serrated Surface and Customizable Sizes Hot Dip Galvanized Steel Grating Drain Cover with Serrated Surface and Customizable Sizes Hot Dip Galvanized Steel Grating Drain Cover with Serrated Surface and Customizable Sizes Hot Dip Galvanized Steel Grating Drain Cover with Serrated Surface and Customizable Sizes

Büyük resim :  Hot Dip Galvanized Steel Grating Drain Cover with Serrated Surface and Customizable Sizes

Ürün ayrıntıları:
Marka adı: Gnee
Ödeme & teslimat koşulları:
Min sipariş miktarı: 2 adet
Ambalaj bilgileri: Metal kayışla sabitleyin Paletle ambalajlayın, dıştan su geçirmez plastik filmle sarın
Teslim süresi: Ödeme yapıldıktan sonra 20 gün içinde kargoya verilir
Yetenek temini: Aylık 300000 Metrekare/Metrekare
İletişim

Hot Dip Galvanized Steel Grating Drain Cover with Serrated Surface and Customizable Sizes

Açıklama
Vurgulamak:

Hot Dip Galvanized Steel Grating

,

Serrated Surface Drain Cover

,

Customizable Sizes Trench Cover

Steel Grating & Bar Grating Solutions
Steel grating is available in various configurations suitable for different applications and load conditions. Hot dip galvanizing or painting provides excellent appearance, durability, and enhanced economy. Galvanized steel grating is widely used in power stations, chemical plants, oil & gas facilities, boiler plants, mining operations, and refineries.
Material Options
Available in Mild Steel (Low Carbon Steel) or Stainless Steel to meet diverse industrial requirements.
Technical Specifications
Plain type and serrated type bearing bars range from 20 x 3 to 100 x 10 mm. I-section types include 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, and 75 x 7 x 4 mm configurations.
No. Item Description
1 Bearing Bar 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10-100x10mm; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3; US standard: 1"x3/16", 1 1/4"x3/16", 1 1/2"x3/16", 1"x1/4", 1 1/4"x1/4", 1 1/2"x1/4", 1"x1/8", 1 1/4"x1/8", 1 1/2"x1/8"
2 Bearing Bar Pitch 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm; US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2
3 Twisted Cross Bar Pitch 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2" & 4"
4 Material Grade ASTM A36, A1011, A569, Q235, S275JR, SS304, Mild steel & Low carbon steel
5 Surface Treatment Black, self color, hot dip galvanized, painted, spray coating
6 Grating Style Plain / Smooth, Serrated / teeth, I bar, serrated I bar
7 Standard China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), UK: BS4592-1987, Australia: AS1657-1985, Japan: JIS
Product Gallery

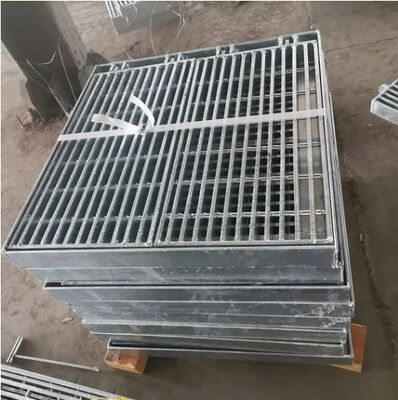

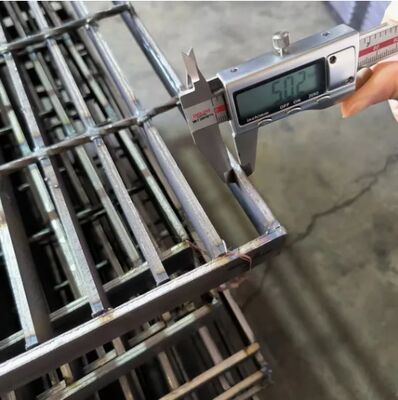

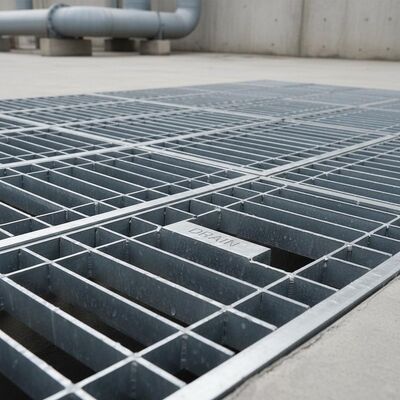

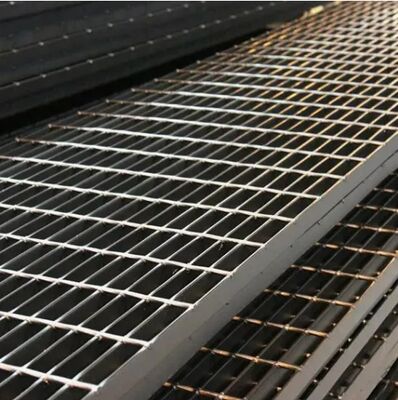

Hot Dip Galvanized Steel Grating Drain Cover with Serrated Surface and Customizable Sizes 0 Hot Dip Galvanized Steel Grating Drain Cover with Serrated Surface and Customizable Sizes 1 Hot Dip Galvanized Steel Grating Drain Cover with Serrated Surface and Customizable Sizes 2

Etiket:

metal driveway drainage grates,

floor trough drain grates,

floor drain grate covers
