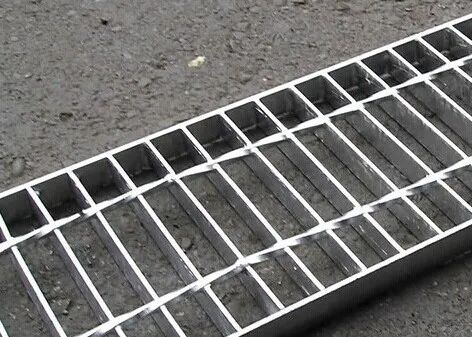

Welded Steel Grating Drain Cover with Stainless Steel and Galvanized Finish for Heavy Duty Applications

Welded Steel Grating Drain Cover with Stainless Steel and Galvanized Finish for Heavy Duty Applications
Welded Steel Grating Drain Cover with Stainless Steel and Galvanized Finish for Heavy Duty Applications Welded Steel Grating Drain Cover with Stainless Steel and Galvanized Finish for Heavy Duty Applications Welded Steel Grating Drain Cover with Stainless Steel and Galvanized Finish for Heavy Duty Applications

Büyük resim :  Welded Steel Grating Drain Cover with Stainless Steel and Galvanized Finish for Heavy Duty Applications

Ürün ayrıntıları:
Marka adı: Gnee
Ödeme & teslimat koşulları:
Min sipariş miktarı: 2 adet
Ambalaj bilgileri: Metal kayışla sabitleyin Paletle ambalajlayın, dıştan su geçirmez plastik filmle sarın
Teslim süresi: Ödeme yapıldıktan sonra 20 gün içinde gönderilir
Yetenek temini: Ayda 300000 metrekare/metrekare
İletişim

Welded Steel Grating Drain Cover with Stainless Steel and Galvanized Finish for Heavy Duty Applications

Açıklama
Vurgulamak:

Welded Steel Grating

,

Stainless Steel Drain Cover

,

Galvanized Bar Grating

Steel Grating Grating Size Stainless Steel Grating Steel Grating Cover
Product Overview

Steel Bar Grating, also known as welded steel bar grate, is an extremely strong and durable solution for all load bearing applications, primarily used for pedestrian and light vehicle traffic.

Available in a variety of bearing bar spacing and thickness options to meet different application requirements and load capacities. Offered in either smooth top or serrated versions for slip resistance.

Welded Steel Grating Drain Cover with Stainless Steel and Galvanized Finish for Heavy Duty Applications 0
Standard Specifications
Specification Details
Material Standard ASTM A36, A1011, A569, Q235, S275JR, Stainless steel 304, Mild steel & Low carbon steel, etc
Bearing Bar (width x thickness) 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4.5, 30x5, 40x5, 50x5, 65x5, 75x6,75x10, 100x10mm, etc.
I Bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3, etc
US Standard: 1"x3/16", 1 1/4"x3/16", 1 1/2"x3/16", 1"x1/4", 1 1/4"x1/4", 1 1/2"x1/4", 1"x1/8", 1 1/4"x1/8", 1 1/2"x1/8", etc.
Bearing Bar Pitch 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41, 41.25, 60, 80mm, etc.
US Standard: 19-W-4, 15-W-4, 11-W-4, 19-W-2, 15-W-2, etc.
Twisted Cross Bar Pitch 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2"&4", etc.
Surface treatment Untreated(black), hot dipped galvanized, powder coated, electroplate, painting or as per customers' requirements
Grating Types Plain/Smooth, Serrated/teeth, I bar, serrated I bar, Serrated I bar
Exporting Packing Ways LCL(Less than one container load): packed with plastic film + wooden pallets
FCL(full container load): nude packing
Other special packages: according to customers' request

Special specifications can be ordered according to your requirements!

Load Size Specifications
Bearing bar pitch Cross bar pitch Load steel size (width x thickness)
30 100 G203/30/100 G253/30/100 G323/30/100 G403/30/100 G205/30/100 G255/30/100
50 G203/30/50 G253/30/50 G323/30/50 G403/30/50 G205/30/50 G255/30/50
Bearing bar pitch Cross bar pitch Load steel size (width x thickness)
40 100 G203/40/100 G253/40/100 G323/40/100 G403/40/100 G205/40/100 G255/40/100
50 G203/40/50 G253/40/50 G323/40/50 G403/40/50 G205/40/50 G255/40/50
Welded Steel Grating Drain Cover with Stainless Steel and Galvanized Finish for Heavy Duty Applications 1 Welded Steel Grating Drain Cover with Stainless Steel and Galvanized Finish for Heavy Duty Applications 2 Welded Steel Grating Drain Cover with Stainless Steel and Galvanized Finish for Heavy Duty Applications 3
