Rust-Proof Galvanized Steel Grating Platform Serrated Steel Grating

Rust-Proof Galvanized Steel Grating Platform Serrated Steel Grating
Rust-Proof Galvanized Steel Grating Platform Serrated Steel Grating
Rust-Proof Galvanized Steel Grating Platform Serrated Steel Grating Rust-Proof Galvanized Steel Grating Platform Serrated Steel Grating Rust-Proof Galvanized Steel Grating Platform Serrated Steel Grating Rust-Proof Galvanized Steel Grating Platform Serrated Steel Grating

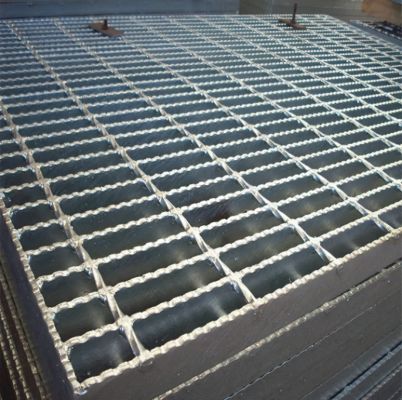

Büyük resim :  Rust-Proof Galvanized Steel Grating Platform Serrated Steel Grating

Ürün ayrıntıları:
Menşe yeri: ÇİN
Marka adı: GNEE
Sertifika: SGS
Ödeme & teslimat koşulları:
Fiyat: negotiable
Ambalaj bilgileri: Denize layık ambalaj, yani çelik şeritli ahşap veya çelik tepsi vb.
Teslim süresi: 5-9 iş günü
Ödeme koşulları: Pazarlık edilebilir
İletişim

Rust-Proof Galvanized Steel Grating Platform Serrated Steel Grating

Açıklama
Vurgulamak:

rust-proof galvanized steel grating

,

serrated steel grating platform

,

galvanized steel grating with warranty

Rust-Proof Galvanized Steel Grating Platform Serrated Steel Grating
Serrated steel grating is ideal for wet environments or areas requiring enhanced non-slip properties. The serration process involves carving patterns into the bars, available in both control and filler bars depending on directional requirements.
Serration Patterns
  • Small Serration: Most common for industrial walkways, staircases, and heavy-duty ramp gratings.
  • Large Serration: Easy to clean, primarily used in industrial kitchens, canteens, and areas with high hygiene and non-slip requirements.

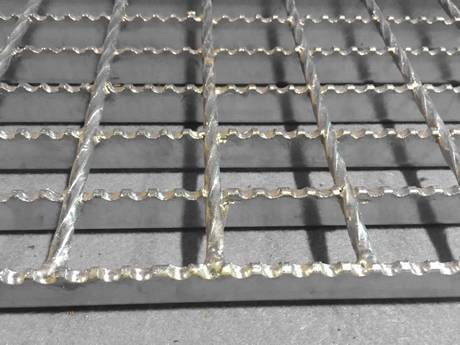

Rust-Proof Galvanized Steel Grating Platform Serrated Steel Grating 0
Serrated steel grating is the most popular type due to its strength, cost-efficiency, and easy installation. Features include high strength-to-weight ratio, non-slip characteristics, rolled-on serrations for safety, and no sharp edges.
Optional serrated bearing bars provide enhanced skid resistance, recommended for areas with liquid accumulation or inclined installations. Note: Serrated grating requires bearing bars 1/4" deeper to maintain equivalent strength to non-serrated gratings.
Technical Specifications
Item Description
Bearing Bar 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc
I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc
Bearing Bar Pitch 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc
US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
Twisted Cross Bar Pitch 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
Material Grade ASTM A36, A1011, A569, Q235, S275JR, SS304, SS400, Mild steel & Low carbon steel, etc
Surface Treatment Black, self colour, hot dip galvanized, painted, spray coating
Grating Style Plain / Smooth, Serrated /teeth, I bar, serrated I bar

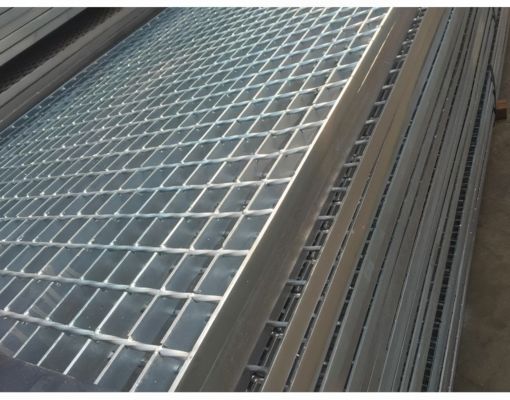

Rust-Proof Galvanized Steel Grating Platform Serrated Steel Grating 1 Rust-Proof Galvanized Steel Grating Platform Serrated Steel Grating 2
