Stair Tread Power Plant Platform Driveway Steel Outdoor Drain Grating Hot Galvanized

Stair Tread Power Plant Platform Driveway Steel Outdoor Drain Grating Hot Galvanized
Stair Tread Power Plant Platform Driveway Steel Outdoor Drain Grating Hot Galvanized Stair Tread Power Plant Platform Driveway Steel Outdoor Drain Grating Hot Galvanized Stair Tread Power Plant Platform Driveway Steel Outdoor Drain Grating Hot Galvanized

Büyük resim :  Stair Tread Power Plant Platform Driveway Steel Outdoor Drain Grating Hot Galvanized

Ürün ayrıntıları:
Menşe yeri: ÇİN
Marka adı: GNEE
Sertifika: SGS
Ödeme & teslimat koşulları:
Fiyat: negotiable
Ambalaj bilgileri: Denize layık ambalaj, yani çelik şeritli ahşap veya çelik tepsi vb.
Teslim süresi: 5-9 iş günü
Ödeme koşulları: Pazarlık edilebilir
Yetenek temini: Haftada 100 ton
İletişim

Stair Tread Power Plant Platform Driveway Steel Outdoor Drain Grating Hot Galvanized

Açıklama
Vurgulamak:

hot galvanized steel grating

,

outdoor driveway drain grating

,

stair tread power plant grating

Stair Tread Power Plant Platform Driveway Steel Outdoor Drain Grating Hot Galvanized
Steel bar grating with high strength and firm structure is made up of carbon steel, aluminum steel, or stainless steel. According to the manufacturing methods, it can be divided into four types: welded, press-locked, swage-locked, and riveted gratings. According to the surface shapes, it can be divided into smooth and serrated gratings. With various styles and sizes for choice, steel gratings are widely used in everyday life, such as stair treads, walkways, platforms, floors, various covers, wheeled equipment, security screens, heavy-duty constructions, and so on.
Product Features
  • Structure: Welding with flat steel and cross/round bars with certain distances
  • Features: High strength, light structure, high bearing capacity
  • Surface: The hot dipped zinc coating gives the product excellent anti-corrosion properties
Steel Grating Specification
Load Bearing Flat Bar size Thickness≥3mm, depth ≥19mm
Available Sizes 19X3,19X5,20X3, 20X5, 25X3, 25X4, 25X4.5, 25X4.7, 25X5.....40X6, 40X8, 40X10,....90X6....
Pitch of Load bearing flat bars(mm) 12.5,15, 20, 30, 30.6, 32.5, 34, 34.8, 35.3, 40, 60, 80...
Pitch of cross bars(mm) 38.1, 50, 50.8, 70, 75, 80, 99,100, 101.6, 102...
Stair Tread Power Plant Platform Driveway Steel Outdoor Drain Grating Hot Galvanized 0
Steel Grating Standards
Country Steel grating standard Steel material standard Hot galvanizing standard
China YB/T4001-1998 GB 700-88 GB/T13912-2002
USA ANSI/NAAMM(MBG531-88) ASTM (A36) ASTM(A123)
England BS4592-1987 BS4360 (43A) BS729
Australia AS1657-1992 AS3679 AS1650
Detailed Specifications
No. Item Description
1 Bearing Bar 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc
I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'',etc
2 Bearing Bar Pitch 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc
US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
3 Twisted Cross Bar Pitch 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
4 Material Grade ASTM A36, A1011, A569, Q235, S275JR, SS304, SS400, Mild steel & Low carbon steel, etc
5 Surface Treatment Black, self colour, hot dip galvanized, painted, spray coating
6 Grating Style Plain / Smooth, Serrated /teeth, I bar, serrated I bar

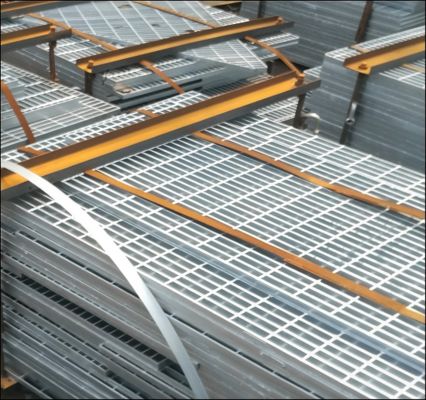

Stair Tread Power Plant Platform Driveway Steel Outdoor Drain Grating Hot Galvanized 1

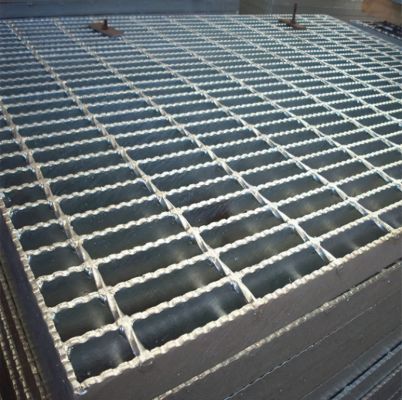

Stair Tread Power Plant Platform Driveway Steel Outdoor Drain Grating Hot Galvanized 2

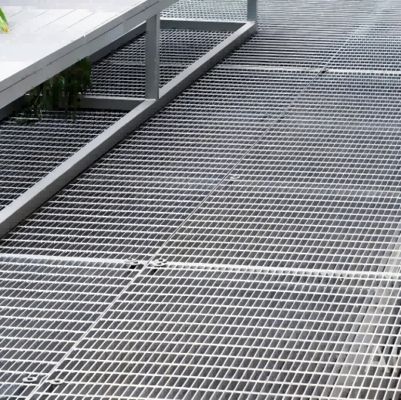

Stair Tread Power Plant Platform Driveway Steel Outdoor Drain Grating Hot Galvanized 3
